Here is the mock-up version of our 2014 Digital Fabrication Lab Research Pavilion currently shown at the Architectural Institute of Japan in Tokyo.
Advanced Design Studies Blog: Critical Mass
Month: November 2014
A look at the aggregation programming & simulation behind STIK

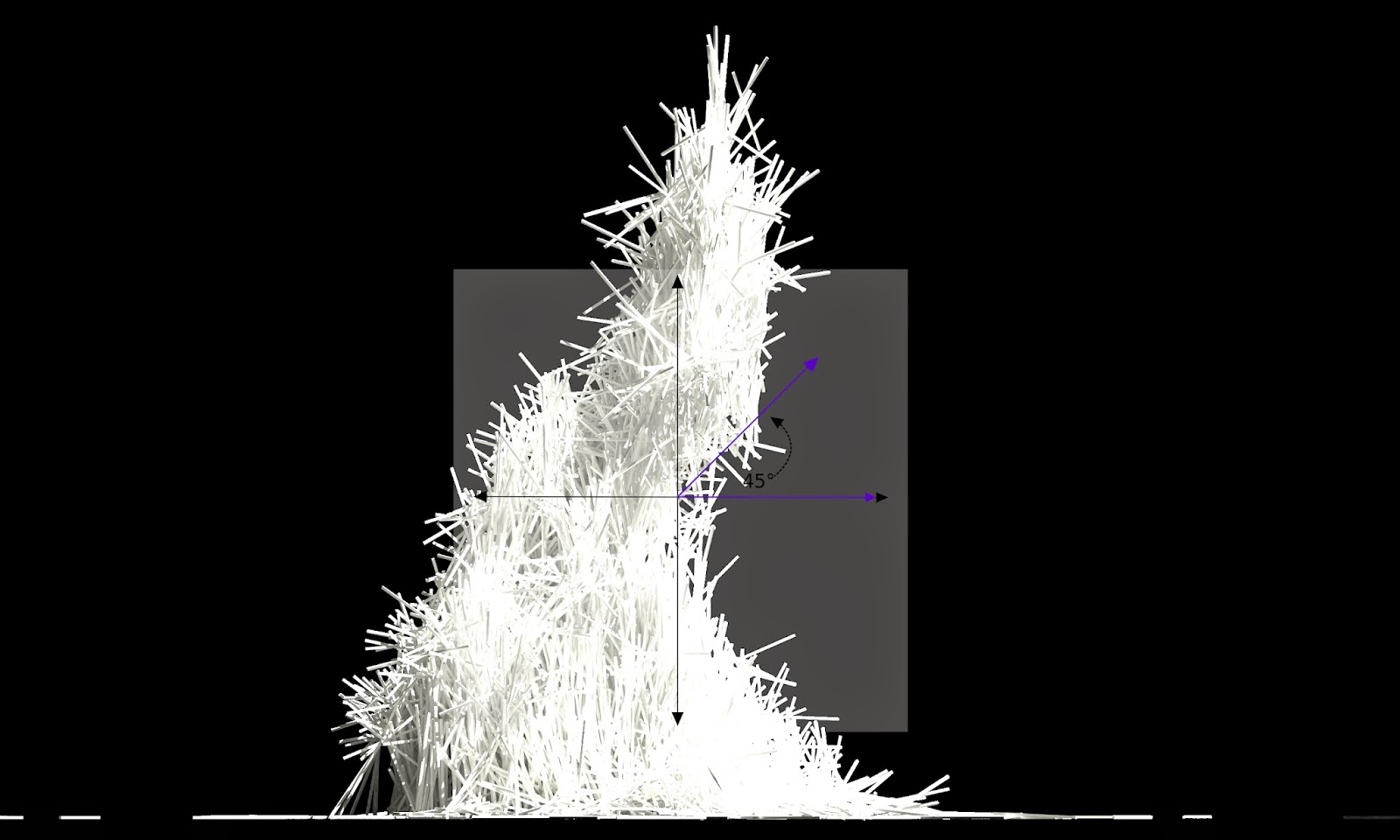

Initial simulations were run to determine maximum curvature achievable with the STIK system. Alteration of the dispensing angle, velocity, friction and adhesion were calculated in order to provide maximum cantilever.
Curvature test 2b
Curvature test 7c

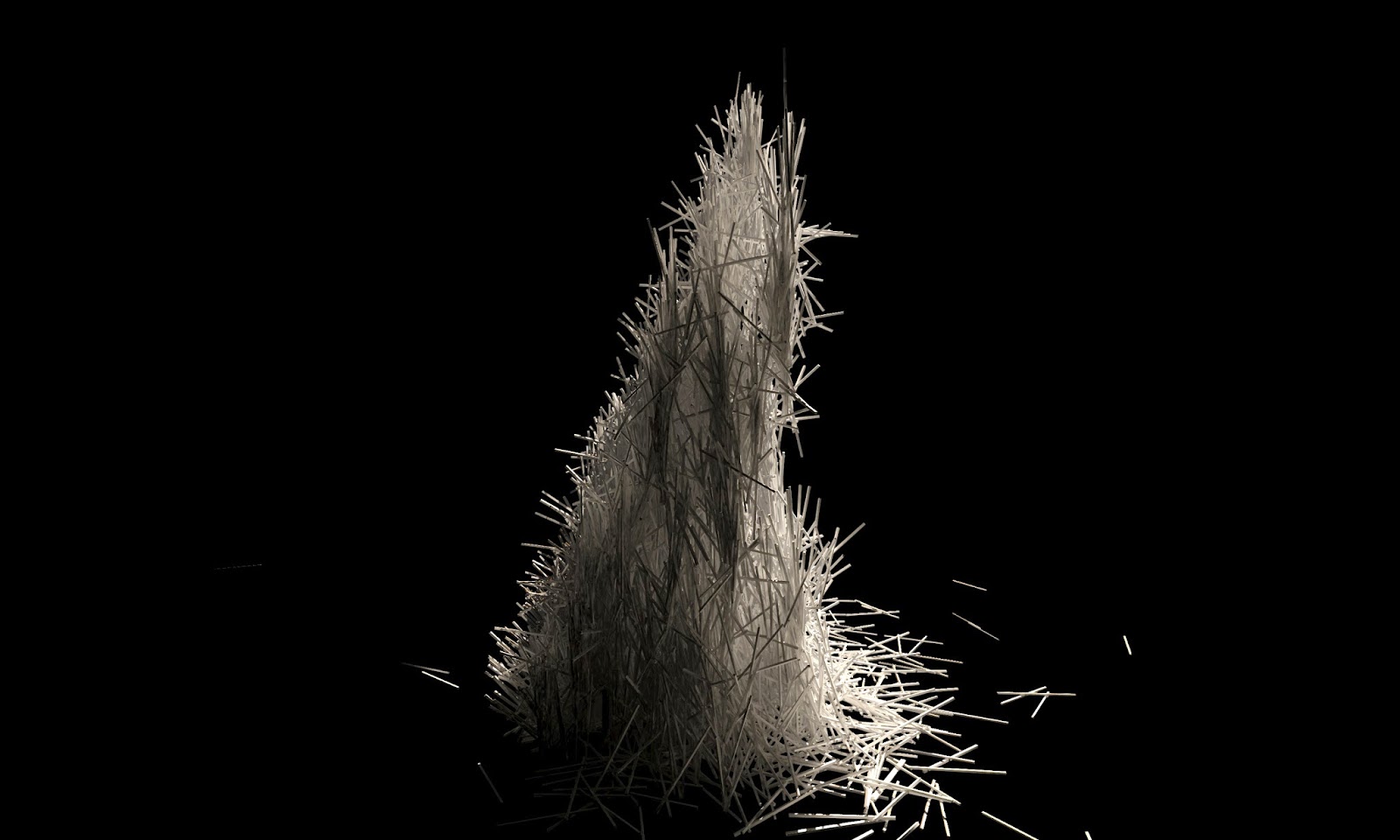

Curvature test 1c
Curvature test 7a
Curvature test 7b
Some process shots of our installation at the AIJ (Architecture Institute of Japan) for the opening of this year’s Archi-neering Design Exhibition.
The construction of our Pavilion is starting on site. After a week of working on the footings, yesterday we began pouring the first chopsticks.
Concrete footings on site.
.JPG)
Pouring chopsticks.
.JPG)
1/8 part of the footprint has been poured with 15.000 chopsticks
(timelapse of panel printing and assembly)
Panel Printing with voxel projection mapping
(0.3m high)
Completed Panel
(1.0 m high)
Temporary panel supports
Full scale section
(~ 4m high)
Complete and free standing section
(~4m high, 1.6m cantilever)
Gearing up the new camera

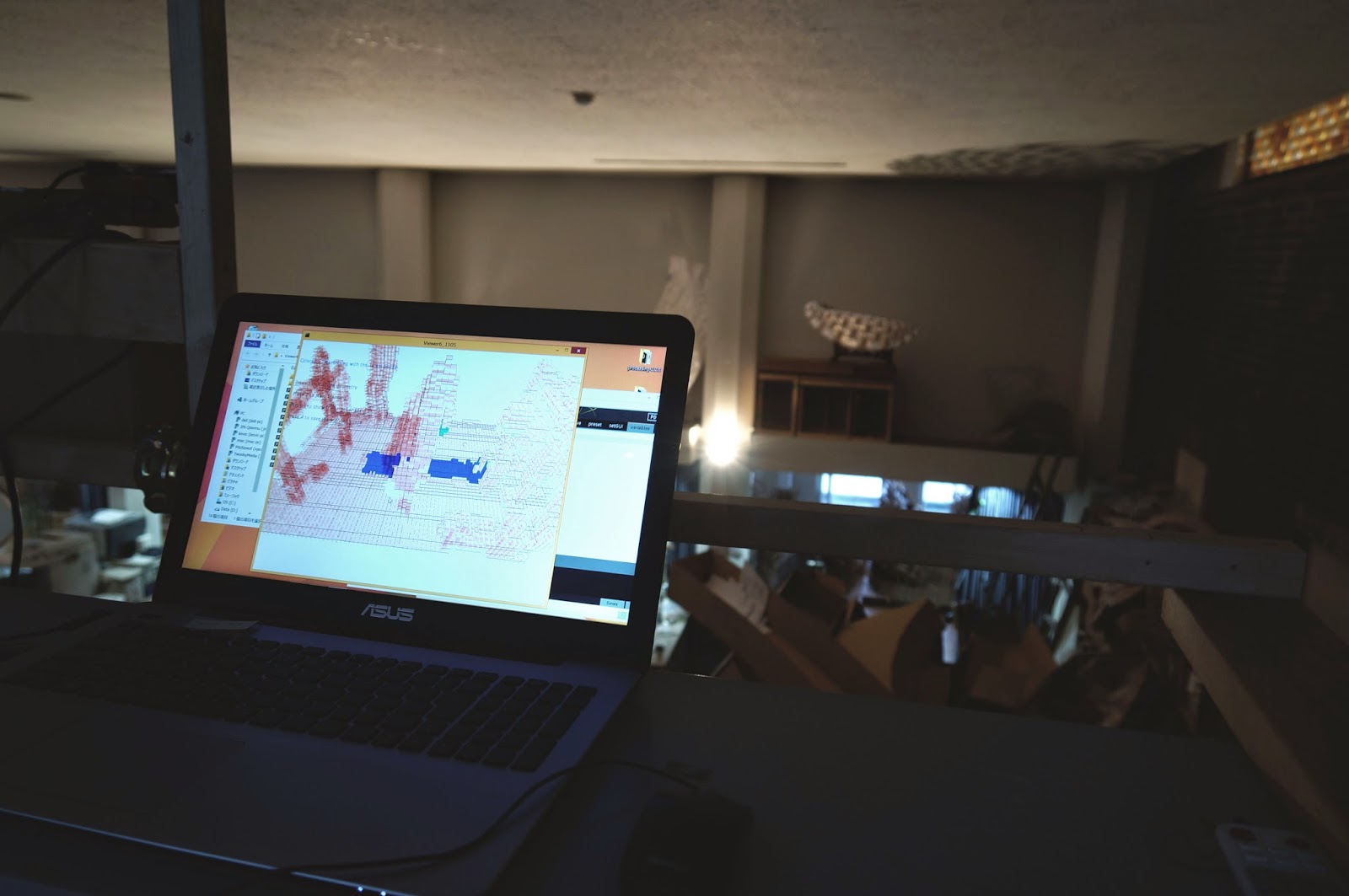

Managing from the rooftops

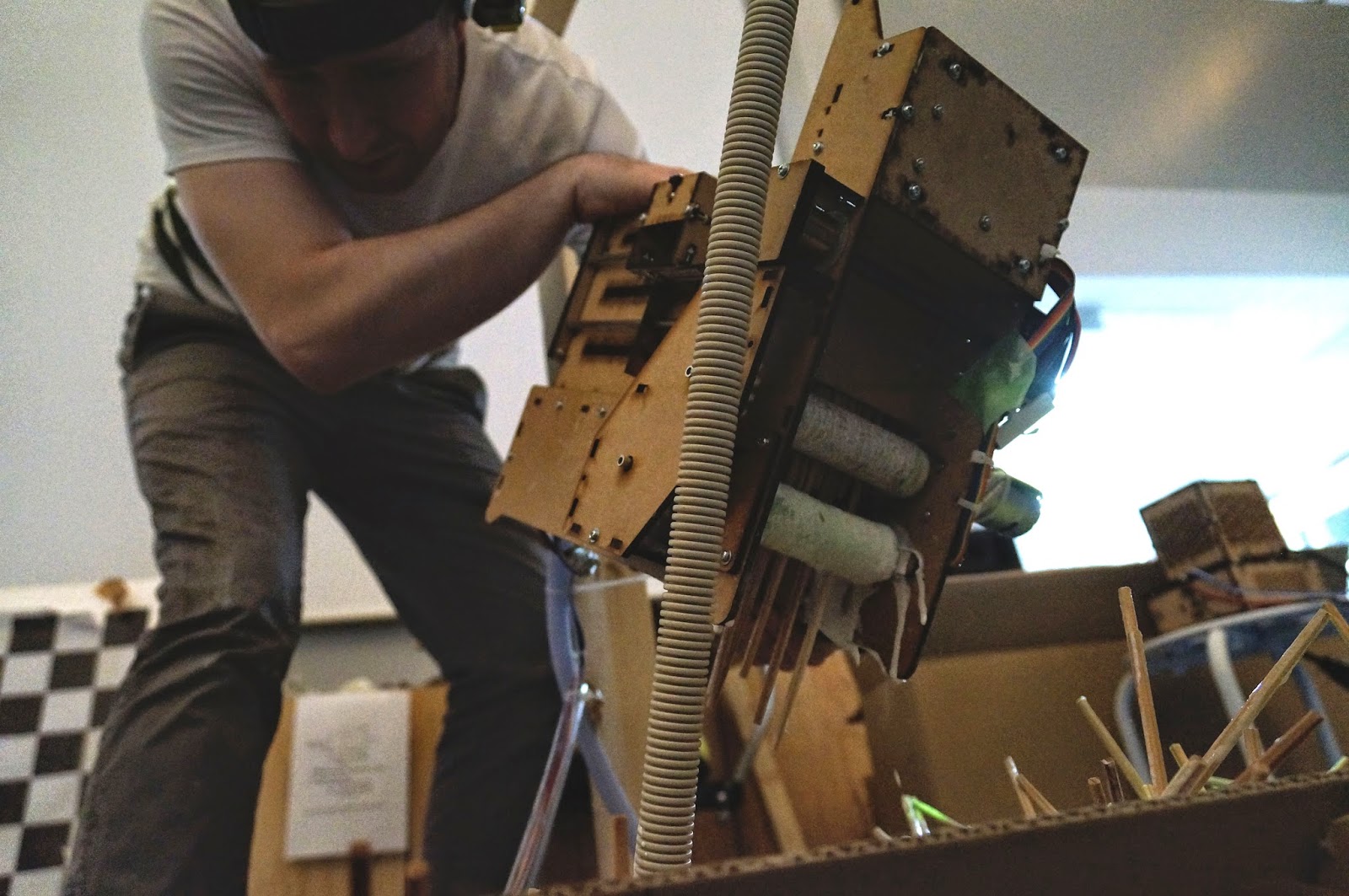

Device in use
1:10 model being built
Scanning System
Books completed for the Exhibition
It’s been a while since we have posted here on our blog.
In the past 9 months, we have been busy developing our new design proposal for this year’s pavilion project which was developed in collaboration with Shimizu Corporation, one of Japan’s major construction company. In the coming days, we will upload images of our current activities and the past events.
Stay tuned.
